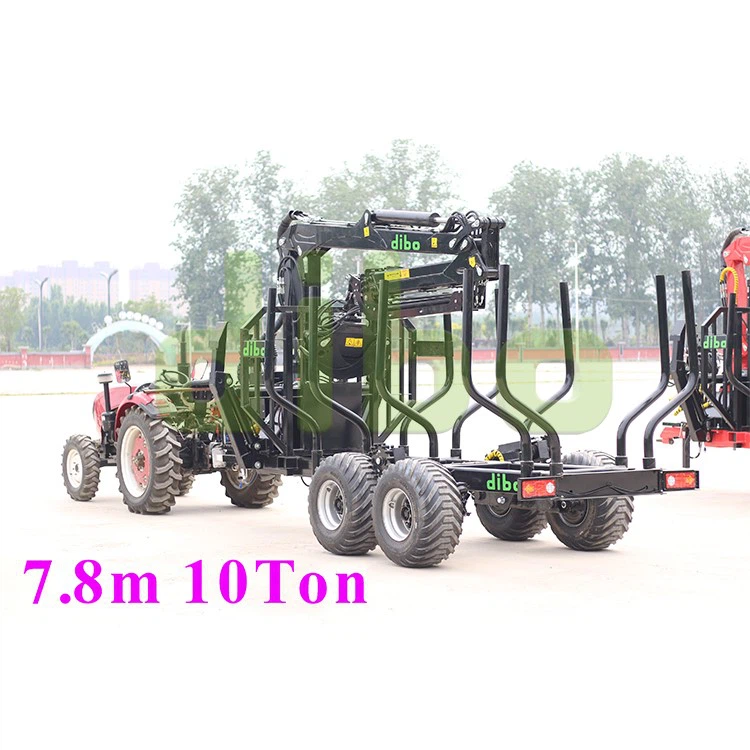

CE kev pom zoo 7.8 meter log crane nrog 10 tuj tuaj yeem nqa 2 tuj \/ 2000Kg thaum 3m. while the motivation can be diesel engine pump station 40hp with multi-cylinder or your tractor.Besides, there are 4.2m\/4.7m\/5.5m\/6.5m\/7.8m timbercrane grapple forestry trailer with hydraulic support legs
| Cov Lus Qhia Tshwj Xeeb ntawm 7.8 'meter log crane nrog 10 tuj zoov hav zoov trailer | ||
| 7.8 meter log crane | Tus qauv | Tc780 |
| Caj npab ntev (m) | 7.8 | |
| Teb cov cua (kn.m) | 19 | |
| Sib Hloov Lub | 380 Qib | |
| Tus naj npawb ntawm cov thooj voos kheej kheej (daim) | 4 | |
| Lifting dag zog ntawm 4 m (kg) | 1880 | |
| Lifting quab yuam nyob ntev (kg) | 720 | |
| Lab Swing nres ntawm ib sab rau sab | tau | |
| Lab swing nres rov qab thiab tawm | tau | |
| Telescopic boom qauv | Yog lawm (ob ntu telescopic boom tib lub sijhawm telescopic stroke 1.6 meters) | |
| Boom 360 degree teb valve | 1pcs | |
| Ib-txoj kev throttle valve rau 360 degree tig ntawm boom | 2pcs | |
| Sib npaug Valve | 1pcs | |
| Pom zoo cov roj Hydraulic Flow (L \/ min) | 45-70 | |
| Ua haujlwm siab (Mpa) | 22 | |
| Txheem Qeeb Lav Tsav | Gr -30 f (3T flange hom) | |
| Tus Qauv Lob | TG26 (Ntau Tshaj Plaws Ntawm 1470mm) | |
| Tag nrho cov hnyav (tsis muaj ceg, valve thaiv) (kgs) | 1230 | |
| Nto Txheej | ||
| Hydraulic Tubing | ||
| 10 tuj hauv hav zoov trailer | Trailer Qauv | TR100 |
| Loading muaj peev xwm (KGS) | 10,000 | |
| Chaw thau khoom thaj chaw (m3) | 2.6 | |
| Tag nrho ntev (hli) | 6,000 | |
| Trailer Chaw Ntev (Hli) | 4,300 | |
| Tag nrho qhov dav (hli) | 2,200 | |
| LOG HOM | 400/60-15.5 | |
| Ntau ntawm cov log tsheb | 4 | |
| Xaws Angel | 70 | |
| Kev dam | Huab Cua Nres \/ Roj nres | |
Tuam Txhab Imgages thiab spare qhov chaw hauv Tshuag ntawm 7.8 meter log crane nrog 10 tuj hav zoov trailer:
Ib qho ntxiv koj xav tau, saum toj no yog 24h serv !!!
Cov Qauv European CE muab pov thawj 7.8 meter log crane nrog 10 tuj, Tebchaws Asmeskas, Canada, Romania, Chile, Nyab Laj thiab tebchaws.
